belongs to the mid infrared frequency band. The CO2 laser has relatively high power and high electro-optical conversion rate. It flushes CO2 gas and other auxiliary gases into the discharge tube. When the motor is pressurized, glow discharge is generated in the discharge tube, which makes the gas molecules release the laser. The released laser energy is amplified to form a laser beam, Then the scanning galvanometer controlled by the computer changes the laser beam light path to illuminate the surface of the processing part, so that the surface material of the workpiece is instantly vaporized; After laser marking, physical and chemical changes will occur on the machined surface, thus revealing the carving effect of patterns, characters, numbers and lines.

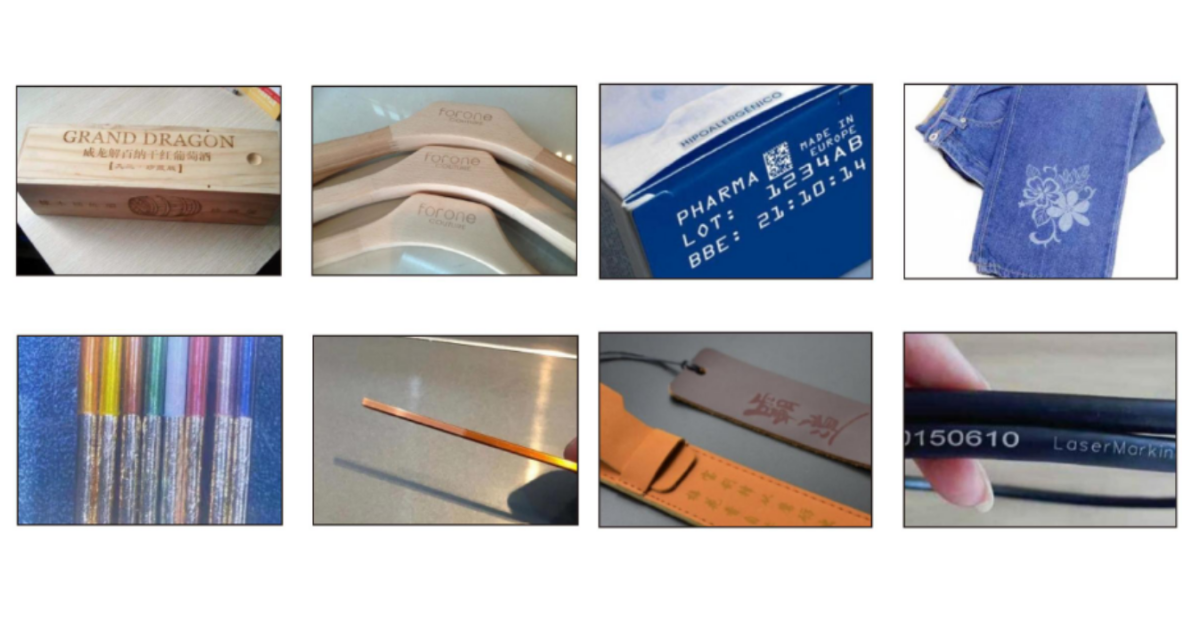

Leather marking Wood marking Crafts marking Carton marking Cloth marking Cable marking Paint stripping of enamelled wire Wood carving Acrylic marking
graphic images, bar codes, two-dimensional codes, serial numbers, etc; It supports PLT, PCX, DXF, BMP, JPG and other file formats, and can directly use TTF font

DCLSC series adopts metal RF tube technology, which greatly improves the stability of the laser, and is widely used in the fine marking processing of most non-metallic materials. It is mainly used in the packaging industry, chemical products, medical devices, medicine, household cleaning, daily necessities, industrial buildings, wood, labels, automobiles, electric vehicles, tobacco, electronics, textiles, aviation equipment, anti-counterfeit security and identification cards, food, beverages and other fields.
| Model | Specification | DCLSC30 | DCLSC60 |
|---|---|---|---|
| Laser performance | Wavelength | 10.6um /9.4um | |
| Power | 30w | 60w | |
| Frequency | 1-25khz | ||
| Instability | <5 % | ||
| Optical properties | Marking speed | Field lens f=160, < 7000 mm/s | |
| Marking range | Field lens f=160 | 110mmx110mm | |
| Field lens f=210 | 145mmx145mm | ||
| Field lens f=254 | 175mmx175mm | ||
| Minimum line width | 0.1mm (stainless steel) @field lens f=160 | ||
| Minimum character height | 0.4mm @field lens f=160 | ||
| Use environment | Cooling method | Air cooled | |
| Power supply | 1.5kw / ac 220v / 50hz | ||
| The power supply voltage fluctuation range is controlled within ±5% | |||
| Working environment | Temperature: 0 ~ 42℃ humidity: 45 ~ 85% | ||
| Safety | Over-current protection; over-temperature protection; over-voltage protection | ||
